SITEX® – SITEX® NYLEX® – SITEX® FL couplings
Other link
SITEX® toothed couplings consist of two toothed steel hubs, which are connected with one internally toothed sleeve manufactured from stabilized 6.6 super polyamide resin.
SITEX® NYLEX® couplings are made of 100% Polyamide. Designed for light applications, low cost and available with finished bore keyway and thread for setscrew.
The SITEX® FL couplings are designed to optimize connections between Diesel engines and driven equipment such as hydraulic pumps.
Features
- Maintenance free
- Compact, easy assembling
- SITEX® FL execution is used in connections between the flywheels of the internal combustion engines
- NYLEX® execution design with polyamide hubs for light-duty applications
- Available on request certified couplings according to ATEX directive 2014/34/EU
Nylon and Flange executions
SITEX® NYLEX®Made of 100% Polyamide.
SITEX® FLFiberglass reinforced polyamide flange
SITEX® NYLEX®Made of 100% Polyamide.
SITEX® NYLEX® couplings are made of 100% Polyamide. Two executions are available:
- CV: in 2 parts (1 hub and one sleeve including the hub)
- C: in 3 parts (2 hubs and one sleeve).
Designed for light applications, low cost and available with finished bore keyway and thread for setscrew.
Temperature range: – 25 °C ÷ + 90 °C.

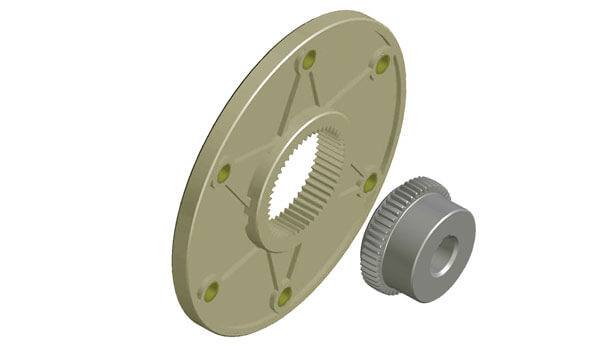

SITEX® FLFiberglass reinforced polyamide flange
SITEX® FL couplings consist of a steel hub and fiberglass reinforced polyamide flange which offers both mechanical strength and dimensional stability in a variety of temperature ranges.
The SITEX® FL couplings are used in connections between flywheels of the internal combustion engines and: hydro-pumps, rotating pistons, and compressor blades.
