METALDRIVE® disc couplings
Other link
METALDRIVE® disc couplings are manufactured 100% of steel and are used in all applications where high reliability, precision, and no maintenance are required. All the components of the METALDRIVE® couplings are completely machined (spacer excluded) and balanced in class DIN ISO 1940-1 Q 6,3.
Features
- Backlash free and torsionally rigid
- Maintenance, lubrication and wear free
- Operating temperature up to 300° C
- Allow axial, angular, and radial misalignment (only with double disc pack)
- Available in conformity to API 610 e API 671
- Available with carbon shaft
- Available on request certified couplings according to ATEX directive 2014/34/EU
METALDRIVE® couplings available executions
S execution Standard version with single disc pack
DC execution Standard version with double disc pack and standard length spacer
SA1 executionTubular shaft version
SA2 executionShaft version with solid shaft construction
DCA execution Double disc pack
S execution Standard version with single disc pack
Allows axial and angular misalignment. No radial misalignment is allowed.

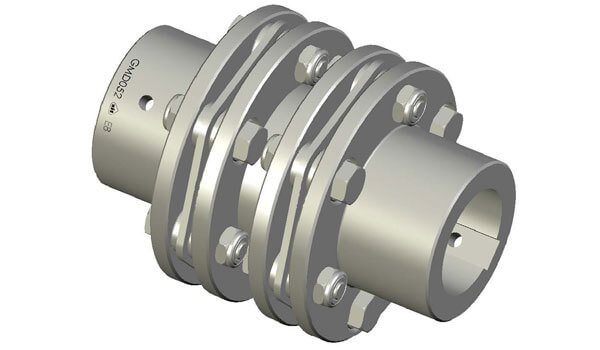

DC execution Standard version with double disc pack and standard length spacer
Allows axial angular and radial misalignment.
SA1 executionTubular shaft version
Shaft is available in various lengths and can be produced in welded aluminum or steel.
Available with carbon shaft.
SA2 executionShaft version with solid shaft construction
Variable shaft lengths are available.
DCA execution Double disc pack
Double disc pack execution and anti-fail device. Standard spacer lengths for pump applications. This execution is available in accordance to API 610 e API 671.
